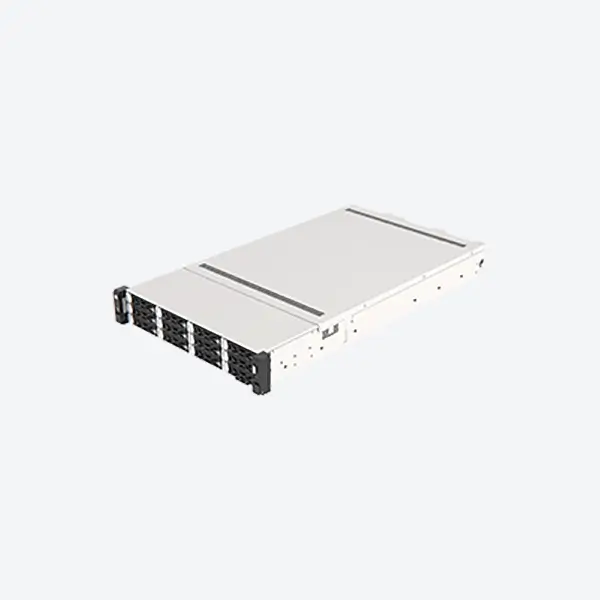

SR223 V2
In Stock
Certified
New
- Authorized Partners
Application scenarios: ultra-large data centers, Android cloud gaming platforms, high-end enterprise servers, high-performance computing platforms
Features:
High Performance
➢ Based on Ampere®’s dual-socket Altra™ multi-core 64-bit ARM-based processors. The CPUs are interconnected via two CCIX (Cache Coherent Interconnect for Accelerators) buses, providing more computing resources for various user applications.
➢ Supports up to 32 3200MT/s DDR4 ECC memory modules. Typical memory configurations support RDIMM (Registered Dual In-line Memory Module) and LRDIMM (Load-Reduced DIMM) types, providing excellent speed, high availability, and up to 64GB of memory capacity (non-3DS).
➢ Supports up to 128 PCIe Gen4 lanes, configurable as PCIe X16, X8, X4, or X2 controllers, meeting various high-performance I/O bandwidth requirements.
⚫ Diversity
➢ Supports a variety of flexible storage solutions, up to 16 hard drives. Utilizing the AnyBay hard drive backplane design, it provides flexible and scalable storage capacity to meet diverse storage capacity needs and upgrade requirements.
➢ Supports flexible I/O card configurations.
➢ Supports up to 8 standard PCIe cards and 1 OCP3.0 MEZZ card.
⚫ Manageability
➢ The Baseboard Management Controller (BMC) web management interface and LED indicators (UID/Health) on the panel guide technicians to quickly locate faulty (or failing) components, simplifying maintenance, accelerating problem resolution, and improving system availability.
➢ The onboard BMC integrated management module continuously monitors system parameters and triggers alarms.
➢ Supports NC-SI (Non-Side Band Response) and allows for multiplexing of management and service network ports.
⚫ Low Power Consumption
➢ A highly efficient VRD power supply design reduces losses in the motherboard’s DC power conversion.
➢ Comprehensively optimized system cooling design and energy-efficient system cooling fans reduce system cooling energy consumption.
➢ Based on Ampere®’s dual-socket Altra™ multi-core 64-bit ARM-based processors. The CPUs are interconnected via two CCIX (Cache Coherent Interconnect for Accelerators) buses, providing more computing resources for various user applications.
➢ Supports up to 32 3200MT/s DDR4 ECC memory modules. Typical memory configurations support RDIMM (Registered Dual In-line Memory Module) and LRDIMM (Load-Reduced DIMM) types, providing excellent speed, high availability, and up to 64GB of memory capacity (non-3DS).
➢ Supports up to 128 PCIe Gen4 lanes, configurable as PCIe X16, X8, X4, or X2 controllers, meeting various high-performance I/O bandwidth requirements.
⚫ Diversity
➢ Supports a variety of flexible storage solutions, up to 16 hard drives. Utilizing the AnyBay hard drive backplane design, it provides flexible and scalable storage capacity to meet diverse storage capacity needs and upgrade requirements.
➢ Supports flexible I/O card configurations.
➢ Supports up to 8 standard PCIe cards and 1 OCP3.0 MEZZ card.
⚫ Manageability
➢ The Baseboard Management Controller (BMC) web management interface and LED indicators (UID/Health) on the panel guide technicians to quickly locate faulty (or failing) components, simplifying maintenance, accelerating problem resolution, and improving system availability.
➢ The onboard BMC integrated management module continuously monitors system parameters and triggers alarms.
➢ Supports NC-SI (Non-Side Band Response) and allows for multiplexing of management and service network ports.
⚫ Low Power Consumption
➢ A highly efficient VRD power supply design reduces losses in the motherboard’s DC power conversion.
➢ Comprehensively optimized system cooling design and energy-efficient system cooling fans reduce system cooling energy consumption.
| Processor and Chipset | Number of processors supported | 2 |
|---|---|---|
| processor socket | Socket LGA-4926 | |
| Processor type | Altra/AltraMax | |
| Supported processors | Altra/AltraMax Series | |
| Thermal Design Power (TDP) | 250W | |
| Chipset manufacturers | Ampere | |
| Chipset Model | Armv8.2 | |
| Memory | Maximum memory | 8 TB |
| Memory Technology | DDR4 NVDIMM | |
| Memory Standards | DDR4- 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | |
| Total memory slots | 32 | |
| harddisk | SATA3 | SATA3 (6Gbps) |
| NVMe | 12 NVMe (optional) | |
| M.2 | 2 | |
| Display and Graphics | Display and Graphics Controller Manufacturers | ASPEED |
| Graphics Controller Model | AST2500 | |
| I/O expansion | PCI Express | PCI Express 4 x PCIe 4.0 x16 (FHFL) slots |
| 4 PCIe 4.0 x8 (FHHL) slots | ||
| Drive bay | Hot swap | 12 |
| Interface/Port | Total USB 3.0 ports | Total USB 3.0 ports: 2 USB 3.0 (Rear) |
| 1 USB 3.0 (Front) | ||
| Number of SATA ports | 12 (optional) | |
| local area network | LAN 1 RJ45 management port | |
| 1 COM port | ||
| Onboard video | Onboard video 2 VGA interfaces | |
| Power Supply Description | Number of power supplies | 2 |
| Redundant Power Supply | yes | |
| Maximum power supply | 1600W | |
| Certification | Platinum Certification | |
| Physical properties | color | Silver |
| Form Factor | Rack Mount | |
| Rack height | 2U | |
| high | 87mm | |
| width | 447mm | |
| depth | 797.5mm |
