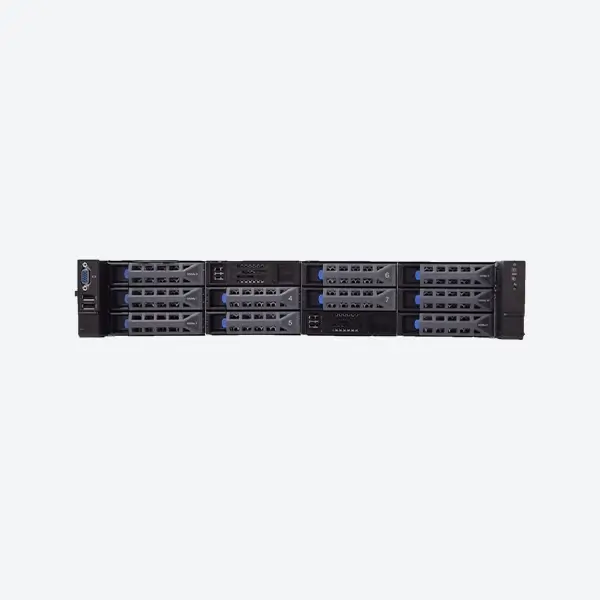

SR223
In Stock
Certified
New
- Authorized Partners
Application scenarios: ultra-large data centers, Android cloud gaming platforms, high-end enterprise servers, high-performance computing platforms
Features:
As a self-developed brand, all server components are provided by the industry’s newest and highest-quality manufacturers, ensuring they remain up-to-date.
The server utilizes a standard server motherboard based on the Armv8.2 chipset, equipped with the Amperer® Altra®/Altra®Max series processors, up to 32 memory slots with 8TB of memory expansion capability, and eight PCI-E 4.0 expansion slots, delivering powerful performance and ultra-high scalability, making it particularly suitable for enterprise-critical applications and core business environments.
A 1300W redundant 1+1 server power supply provides enhanced stability and reliability under high-load operation, and strongly supports subsequent application expansion and configuration expansion.
Ten standard 3.5-inch hot-swappable hard drive bays (expandable to 14) provide massive data storage capacity, ease of maintenance, and uninterrupted server operation.
IPMI remote management is provided. The remote management module operates at the BIOS level, allowing users to remotely monitor the system and perform real-time operations, including powering it on and off, using a keyboard, monitor, and mouse. System administrators can perform these operations and resolve potential system issues anytime, anywhere using only a local computer.
Processor and Chipset | Number of processors supported | 2 |
---|---|---|
processor socket | Socket LGA-4926 | |
Processor type | Altra/AltraMax | |
Supported processors | Altra/AltraMax Series | |
Thermal Design Power (TDP) | 250W | |
Chipset manufacturers | Ampere | |
Chipset Model | Armv8.2 | |
Memory | Maximum memory | 8 TB |
Memory Technology | DDR4 NVDIMM | |
Memory Standards | DDR4- 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | |
Total memory slots | 32 | |
harddisk | SATA3 | SATA3 (6Gbps) |
NVMe | 8 NMVe (optional) | |
M.2 | 1x M.2 NVMe | |
Display and Graphics | Display and Graphics Controller Manufacturers | ASPEED |
Graphics Controller Model | AST2600 | |
I/O expansion | PCI Express | 3 PCIe 4.0 x16 (FHHL) slots (expandable to 8 PCIe 4.0 x16 slots) |
Drive bay | Hot swap | 14 |
Interface/Port | Total USB 3.0 ports | 2 USB 3.0 (Rear) |
2 USB 2.0 (Front) | ||
Number of SATA ports | 6 | |
local area network | 1 RJ45 management port | |
1 RJ45 COM port | ||
Onboard video | 2 VGA ports | |
Power Supply Description | Number of power supplies | 2 |
Redundant Power Supply | yes | |
Maximum power supply | 1300W | |
Certification | 80Plus Platinum | |
Physical properties | color | Silver |
Form Factor | Rack Mount | |
Rack height | 2U | |
high | 89 mm | |
width | 438 mm | |
depth | 850 mm |
