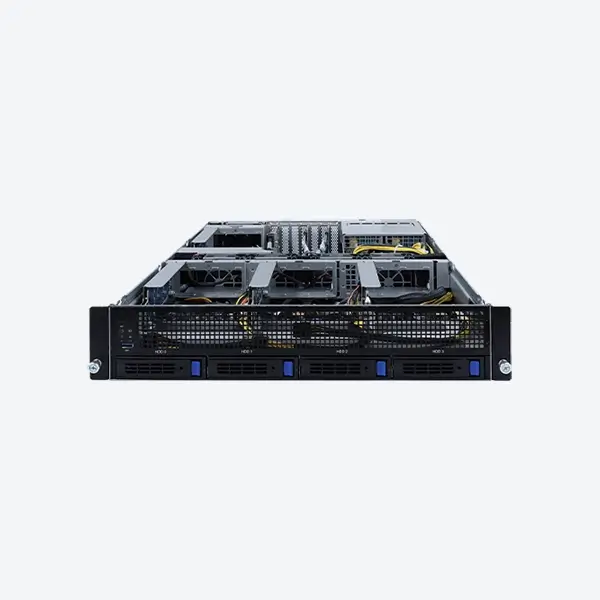

GR2134
In Stock
Certified
New
- Authorized Partners
Application scenarios: artificial intelligence platform, artificial intelligence training server, artificial intelligence inference server, high-performance computing platform
Features:
As an independently developed brand, server components are provided by the latest and highest-quality manufacturers in the industry and are kept up to date.
It uses a standard server motherboard based on the Armv8.2 chipset and is equipped with Amperer® Altra®/Amperer® Altra® Max series processors. It has up to 16 memory slots with 4TB memory expansion capability and 7 PCI-E 4.0 expansion slots, providing powerful performance and ultra-high expansion capabilities, making it particularly suitable for enterprise-critical applications and core business environments.
The 1300W redundant 1+1 server power supply provides better stability and reliability when the server is running at high load, and provides strong support for users’ subsequent application expansion and configuration.
It also provides two Gigabit Ethernet interfaces for reliable and fast network connections. While easily managing virtualized applications, it can still provide excellent performance;
it comes standard with four 3.5-inch hot-swappable hard drive bays, providing massive data storage capacity, making the server easy to maintain, and better ensuring the uninterrupted operation of the server;
it provides IPMI remote management function, and the remote management module operates at the BIOS level, allowing users to remotely monitor the system in real time and perform real-time operations including power on and off through the keyboard, monitor and mouse. System administrators only need a local computer to perform the above operations at any time and any place, and solve possible system problems.
Processor and Chipset | Number of processors supported | 1 |
---|---|---|
processor socket | Socket LGA-4926 | |
Processor type | Altra/AltraMax | |
Supported processors | Altra/AltraMax Series | |
Thermal Design Power (TDP) | 250W | |
Chipset manufacturers | Ampere | |
Chipset Model | Armv8.2 | |
Memory | Maximum memory | 4 TB |
Memory Technology | DDR4 NVDIMM | |
Memory Standards | DDR4- 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM | |
Total memory slots | 16 | |
harddisk | SATA3 | SATA3 (6Gbps) |
NVMe | N/A | |
M.2 | 2 x M.2 NVMe | |
Display and Graphics | Display and Graphics Controller Manufacturers | ASPEED |
Graphics Controller Model | AST2500 | |
I/O expansion | PCI Express | 4 front PCIe x16 (FHFL) double-width slots |
2 PCIe 4.0 x16 (LP) slots (occupied by CRSG02F) | ||
3 PCIe 4.0 x8 (LP) slots | ||
1 PCIe 4.0 x8 (LP) slot (occupied by CRA3338 SAS Card) | ||
Drive bay | Hot swap | 4 |
Interface/Port | Total USB 3.0 ports | 1 USB 3.0 (Rear) |
1 USB 3.0 (Front) | ||
1 USB 2.0 (Front) | ||
Number of SATA ports | 4 | |
local area network | 1 RJ45 management port | |
2 RJ45 Gigabit ports | ||
Onboard video | 1 VGA port | |
Power Supply Description | Number of power supplies | 2 |
Redundant Power Supply | yes | |
Maximum power supply | 1300W | |
Certification | 80Plus Platinum | |
Physical properties | color | Silver |
Form Factor | Rack Mount | |
Rack height | 2U | |
high | 87.5 mm | |
width | 438 mm | |
depth | 820 mm |
